Characteristic :
1.There are three ways to heat the heat source: steam, electricity, electricity and steam.
2. Use of temperature: electric heating 80-200 ℃;
3.Automatic control of temperature and automatic alarm
4.Body wall pulling rivet
5.The whole machine has good sealing performance and unique guide rail sealing device, which ensures the sealing performance of the whole machine.
6.Inlet filter net; filter net of drain outlet 。

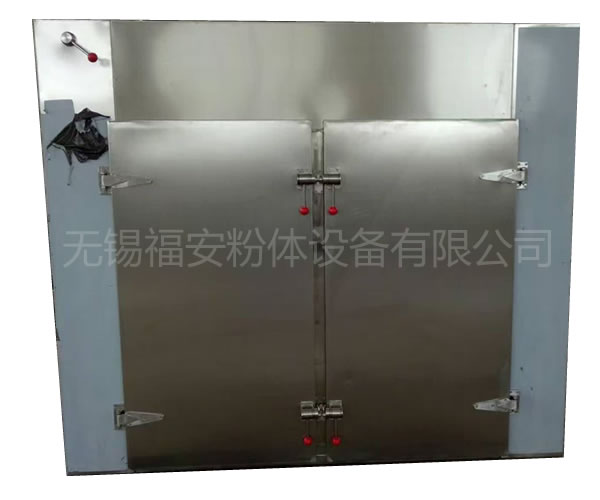

7.Double doors of double door oven to realize mechanical interlocking ;
8.All parts in the oven can be quickly disassembled and installed quickly, so as to facilitate cleaning. ;
Application scope :
Hot air circulation oven is suitable for the heating, curing, drying and dehydration of pharmaceutical, chemical, food, agricultural and sideline products, aquatic products, light industry, heavy industry and other industries. Such as raw material, raw medicine, Chinese herbal medicine, extract, volume, granule, granule, water pill, packing bottle, pigment dyestuff, dehydrated vegetable, dried melon fruit, sausage, plastic resin, electrical appliance, baking paint, etc. ;
Technical parameter :
Serial number | Project | Specifications | Serial number | Project | Specifications |
1 | Shape size | 3430×2200×2000 | 5 | Inside temperature | 30-150° |
2 | Heating mode | Electric heating 27kw | |||
3 | Baking tray | 144 | 6 | Roasting car | 3 |
4 | Bake size | 460×640×150 | 7 | Fan | 0.45KW*2 |
Serial number | Name | Specification model | Texture of material | Number | Total price | Prepare |
1 | Outer wall | δ=1.5 | carbon steel | 1 | Q235A | |
2 | wall | δ=0.8 | Stainless steel | 1 | 304 | |
3 | floor | δ=3.0 | carbon steel | 1 | Q235A | |
4 | skeleton | 5# Angle steel | carbon steel | 1 | Q235A | |
5 | Split air plate | δ=1.5 | Stainless steel | 1 | 304 | |
6 | Split air plate skeleton | δ=3.0 | Stainless steel | 1 | 304 | |
7 | Axial fan | Matching | Aluminium alloy | 2 | 0.45KW/Tai | |
8 | Sealing strip | Matching | silicon rubber | 1 | ||
9 | Electric heater | 27KW | Stainless steel | 1 | 304 | |
10 | Insulation layer | 80mm | Fiberglass Cotton | 1 | superfine | |
11 | Roasting car | 1.5mm | Stainless steel | 6 | 304 | |
12 | Roasting wheel | Matching | Stainless steel | 24 | nylon wheel | |
13 | Baking tray | δ=0.6 | Stainless steel | 144 | 304 | |
14 | Air inlet filter | Matching | Stainless steel | 1 | 304 | |
15 | Air outlet filter net | Matching | Stainless steel | 1 | 304 | |
16 | Side Door Latches & Hinges | Matching | carbon steel | 1 | assembly | |

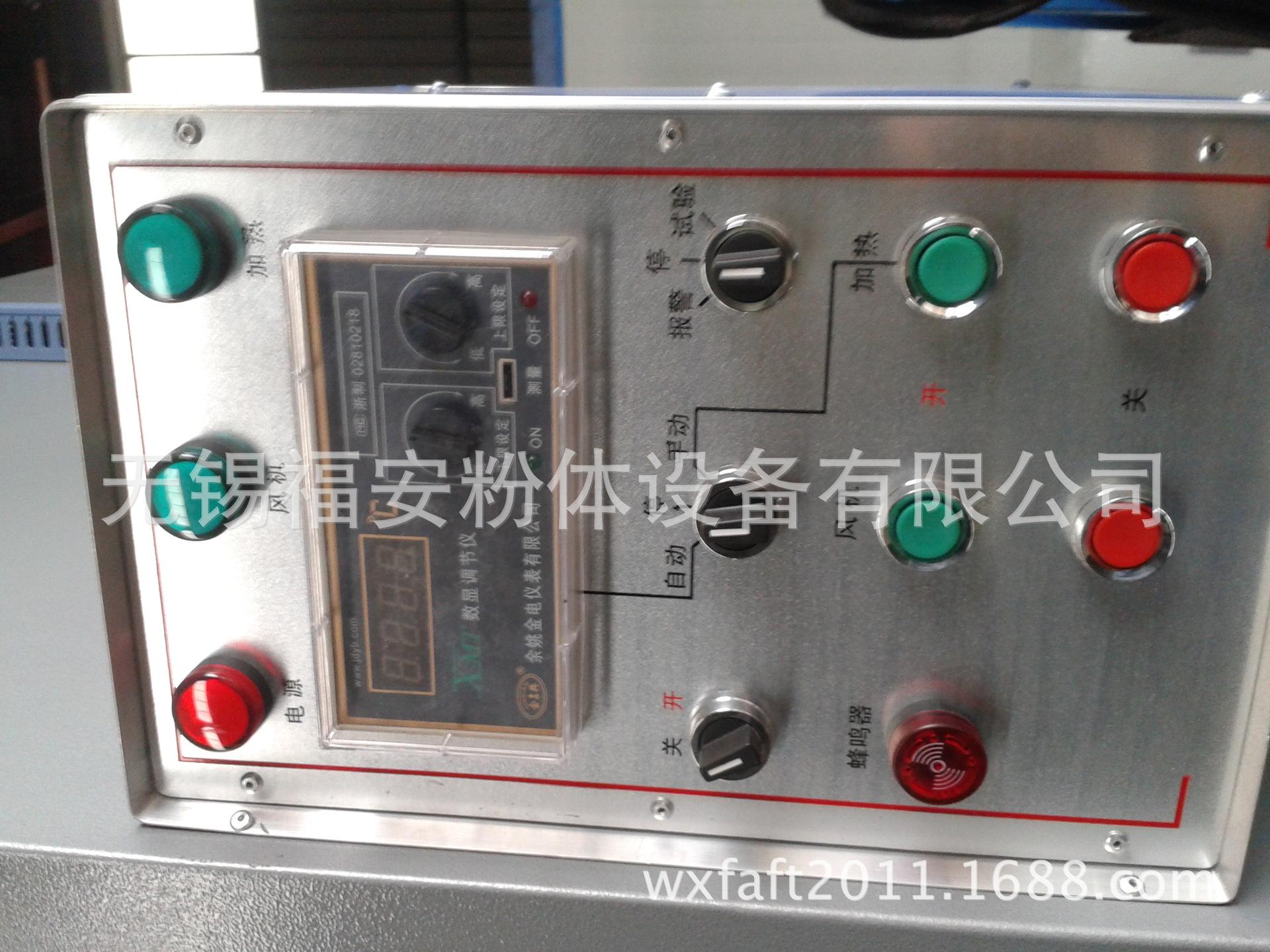

17 | Automatic control device | Matching | assembly | 1 | Delic electric appliance |
