Bar pin type grinding machine

Bar pin type grinding machine

Summary ：

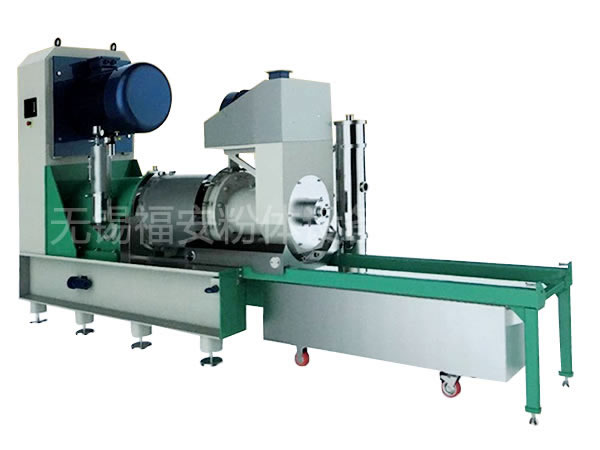

SMB high performance rod pin type nano grinder
There are many kinds of machines to satisfy customers' needs from lab, pilot and mass production, and have technical knowledge and service of complete turnkey projects.
It can also design according to the needs of customers, according to the customer's good capacity, and set the type.
The company provides standard and intelligent control systems to meet the needs of different customers. The intelligent control system ensures that all process parameters are monitored and recorded.

Internal structure ：

Advantage ：
1、High grinding efficiency
2、Low energy consumption and low energy consumption
3、Double end mechanical seal with cooling circuit
4、Frequency conversion debugging to control product precision grinding energy
5、The design of cooling circuit with spiral guide has good cooling effect.

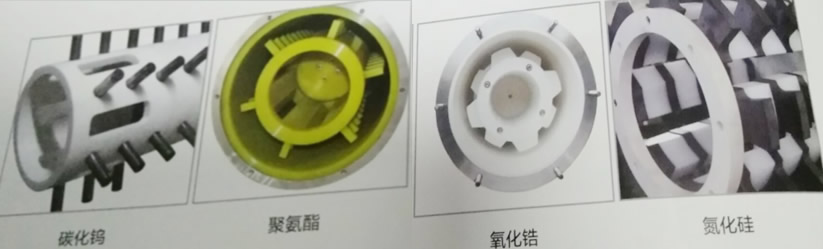

6、Grinding cavity material: zirconia or polyurethane, wear-resistant, no metal pollution.
The mixing shaft of the bar pin type grinding machine is hollow structure, and the hollow shaft is equipped with a super large filter area, which can choose a larger circulation and use a small size grinding medium so that the product can reach the nanometer scale.

Technical parameter table ：

Parameter / model	SMB-1	SMB-5	SMB-10	SMB-20	SMB-30	SMB-60	SMP-100
Main motor power （KW)	3.7	15	22	30	45	75	110
Net volume of cylinder （L）	1	5	10	20	30	60	100
Feeding capacity （L/MIN）	0.6-4	300	500	1000	2000	2200	3000

Application field ：
Ink jet, ceramic, microelectronics and semiconductor, cosmetics, medicine, medicine, paper, food, biological science, fuel catalyst, metal oxide, pigment, kaolin, rare earth, electronic slurry, barium carbonate, graphite
