Summary
A three dimensional motion mixer is a kind of mixer, which is used in the mixing of powder and granular materials in pharmaceutical, chemical, food, light industry, electronics, machinery, mining and metallurgy, national defense industry and scientific research units. The cylinder is circular arc all over, and is processed by precision polishing.

Principle
The barrel has multi direction operation, which accelerates the flow and diffusion of various materials in the mixing process, and avoids the segregation and accumulation of the specific gravity of the material produced by the centrifugal force, and the mixture has no dead angle, which can effectively ensure the best quality of the mixed material.

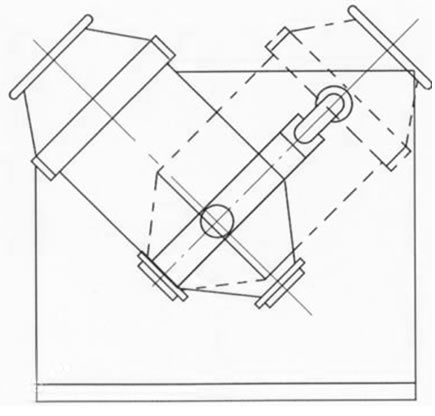

Structure
The three-dimensional motion mixer is composed of the machine seat, the transmission system, the electrical control system, the multi direction moving working mechanism, the mixing bucket and other components. The mixing bucket directly contact with the material is made of stainless steel, and the inner and outer walls of the barrel are all polished.

Characteristics of three dimensional motion mixer
· The mixing cylinder is moving in many directions, the material has no centrifugal force, and there is no specific gravity segregation and stratification and accumulation. Each component can have a great difference in weight ratio, and the mixing rate is above 99.9%. It is an ideal product of all kinds of mixing machines at present.
· The loading rate of the cylinder is large, up to 90% (40% for ordinary mixer), high efficiency and short mixing time.
