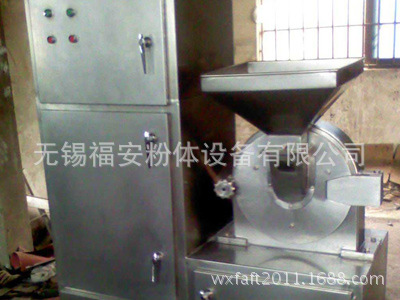

This machine is mainly used for crushing materials in pharmaceutical, food and chemical industries.
Working principle

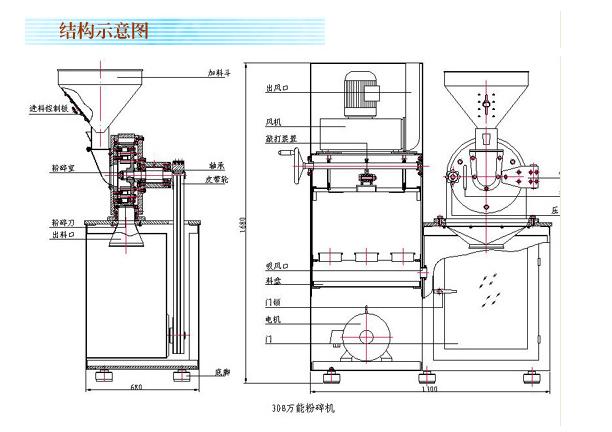

The unit utilizes the relative movement between the movable gear plate and the fixed gear disc, so that the material is smashed through impact, friction and impact between the materials. The crushed material is automatically entered into the trap bag by rotating centrifugal force, and the dust is filtered and recovered by the cloth bag in the dust box. The machine is designed according to the "GMP" standard, all made of stainless steel and no dust flying in the production process. Moreover, it can improve the utilization ratio of materials and reduce the cost of enterprises. At present, it has reached the international advanced level.

Model |
20B |
30B |
40B |
60B |
Throughput (kg/h) |
20-150 |
30-300 |
40-800 |
60-1200 |
Spindle speed (r/min) |
4500 |
3800 |
3400 |
2600 |
Feed grain size (mm) |
<6 |
<10 |
<12 |
<15 |
Mesh |
12-120 |
12-120 |
12-120 |
12-120 |
Comminuted motor (kw) |
4 |
5.5 |
7.5 |
15 |
Suction motor (kw) |
1.5 |
1.5 |
1.5 |
1.5 |
Weight (kg) |
350 |
420 |
580 |
750 |
Shape size (mm)
(L×W×H) |
1100×500
×1650 |
1200×600
×1650 |
1350×750
×1700 |
1650×950
×2100 |
