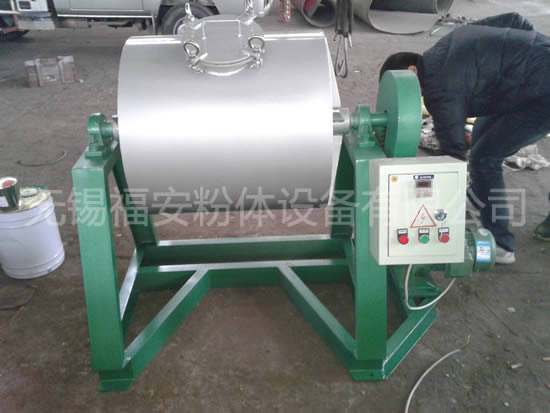

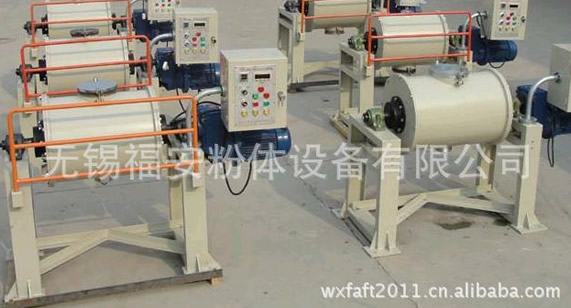

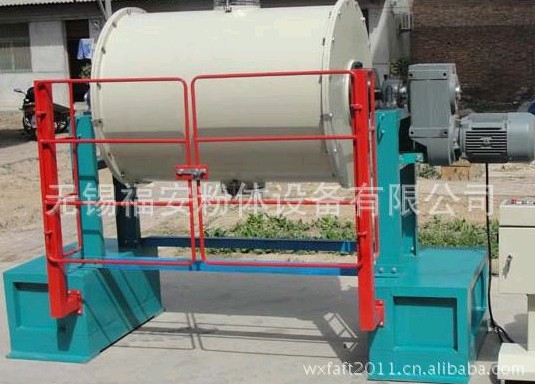

WJ type (polyurethane lining) horizontal ball mill is used for grinding and dispersing liquid solid materials, especially suitable for fine grinding and dispersion of high purity materials. The machine has the characteristics of high wear resistance, good sealing, small pollution, low noise, super fineness, low consumption, convenient feeding and discharging. It can be widely used in special industries such as electronic materials, magnetic materials, ceramic glaze paste, ink pigment, non-metallic mineral and other special industries.
1、The optimum design of the rotating speed of the tank can make the medium ball in the ball mill form the tilting movement of the material, and get the best grinding effect, and the material can be grinded quickly.
2、The machine is a direct coupling transmission structure, which is driven by the motor and the gear reducer is driven by the motor. The output hollow shaft of the reducer is directly set on the drive shaft of the grinding ball tank, and the reducer starts to reduce the impact pad. The utility model has the advantages of large transmission torque, high mechanical efficiency and stable starting, and eliminates the trouble of adjusting the transmission belt regularly.
3、The machine is controlled by digital time controller. The working time can be set at any time according to the need, and it has the function of pause and accumulating timing control. The operation is time-saving, easy and convenient.
4、The WJ/B type is frequency converter speed regulation. It has the tachometer showing the rotational speed of the grinding cylinder, and the grinding cylinder has a slow speed control function.
1、The machine is suitable for materials whose bulk density is below 5, and the bulk density is greater than 5.
2、The basic type is made of polyurethane lining material, and it can also customize the lining ball mill for carbon steel, stainless steel, manganese steel or alumina porcelain, zirconia porcelain, nylon and wear-resistant rubber for users.
3、The polyurethane material selected by this machine is not resistant to solvents such as toluene and acetone. Alcohol and other solvents. If other solvents are used as dispersing agents, the experiment should be done first so as not to damage the polyurethane lining.
| Model | Net volume (L) |
Rotary speed of the mill (Turn / divide ) |
Loading volume (L) |
Ball volume (L) |
Diameter of porcelain ball (V) |
Inlet (mm) |
Outlet (mm) |
Motor power (Kw) |
Tank size (mm) |
Polyurethane lining thickness (mm) |
| WJ-70 | 70 | 41 | 28 | 21 | 15-30 | Ø160 | Ø50 | 1.1 | Ø454x586 | 15 |
| WJ-70/B | 70 | 20-57 | 28 | 21 | 15-30 | Ø160 | Ø50 | 2.2 | Ø454x586 | 15 |
| WJ-100 | 100 | 38 | 40 | 30 | 15-30 | Ø160 | Ø50 | 1.5 | Ø524x626 | 15 |
| WJ-100/B | 100 | 20-57 | 40 | 30 | 15-30 | Ø160 | Ø50 | 2.2 | Ø524x626 | 15 |
| WJ-200 | 200 | 36 | 80 | 60 | 15-30 | Ø180 | Ø50 | 2.2 | Ø630x830 | 16 |
| WJ-200/B | 200 | 20-50 | 80 | 60 | 15-30 | Ø180 | Ø50 | 3 | Ø630x830 | 16 |
| WJ-300 | 300 | 32 | 120 | 90 | 15-30 | Ø180 | Ø50 | 3 | Ø720x930 | 16 |
| WJ-300/B | 300 | 15-43 | 120 | 90 | 15-30 | Ø180 | Ø50 | 4 | Ø720x930 | 16 |
| WJ-500 | 500 | 29 | 200 | 150 | 15-30 | Ø180 | Ø50 | 4 | Ø860x1056 | 17 |
| WJ-500/B | 500 | 15-40 | 200 | 150 | 15-30 | Ø180 | Ø50 | 5.5 | Ø860x1056 | 17 |
| WJ-1000 | 1000 | 28 | 400 | 300 | 15-30 | Ø240 | Ø60 | 7.5 | Ø1070x1280 | 20 |
| WJ-1000/B | 1000 | 15-41 | 400 | 300 | 15-30 | Ø240 | Ø60 | 11 | Ø1070x1280 | 20 |
| WJ-1500 | 1500 | 22 | 600 | 450 | 15-30 | Ø240 | Ø60 | 11 | Ø1220x1460 | 22 |
| WJ-1500/B | 1500 | 15-34 | 600 | 450 | 15-30 | Ø240 | Ø60 | 15 | Ø1220x1460 | 22 |
Note: 1. The diameter of the ceramic ball is based on the alumina ceramic ball, and the other medium ball diameter parameters are provided separately; 2, the thickness of the alumina lining 20-50mm; 3, the nylon liner thickness 20-30mm; 4, the stainless steel thickness 8-18mm.
